EcoTerra® Waterproof Tile Backer Board

Core Product · ET-WB

The EcoTerra multi-purpose waterproof backer board uses an eco-friendly XPS extruded polystyrene board as its core — high compressive strength, B1 fire-rated, corrosion-resistant, low thermal conductivity. Alkali-resistant fibreglass mesh is wrapped on both faces, then coated with modified cement mortar, and formed in one piece through a composite penetration process. The result offers compressive and flexural strength, waterproofing, corrosion resistance, low thermal conductivity and strong bonding. It also provides decoupling, isolating crack stress from the substrate below and reducing cracking of the finish layer under deformation and vibration.

Request a Quote

Waterproof & moisture-proofClosed-cell structure blocks water vapour migration

Mould & corrosion resistantNo mould growth in humid environments

Class A fire-rated surfaceSurface layer passed national fire testing

Thermal insulationLow thermal conductivity

Sound reductionImproves indoor acoustics

Decoupling, anti-crackHelps prevent tile cracking and detachment

Levelling substrateFast levelling, saves labour and time

Stable & compatibleWorks with tile adhesives and mortars

LightweightEasy to carry and cut

Healthy & eco-friendlyNo formaldehyde or harmful substances

Structure

Core — extruded polystyrene (XPS), closed-cell structure that prevents water migration and blocks water-vapour transmission. Core colour selectable (blue / green / pink / grey etc.).
Reinforcement — alkali-resistant glass-fibre mesh on both faces, increasing strength and rigidity.
Coating — specially formulated polymer mortar surface, compatible with modified polymer mortars, tile adhesives and other finishing primers.

Technical Specifications

Basic
Product name	Waterproof Tile Backer Board
Model	ET-WB series
Thickness	4 / 6 / 8 / 10 / 12 / 15 / 20 / 30 / 50 mm
Standard size	1220 × 2440 mm

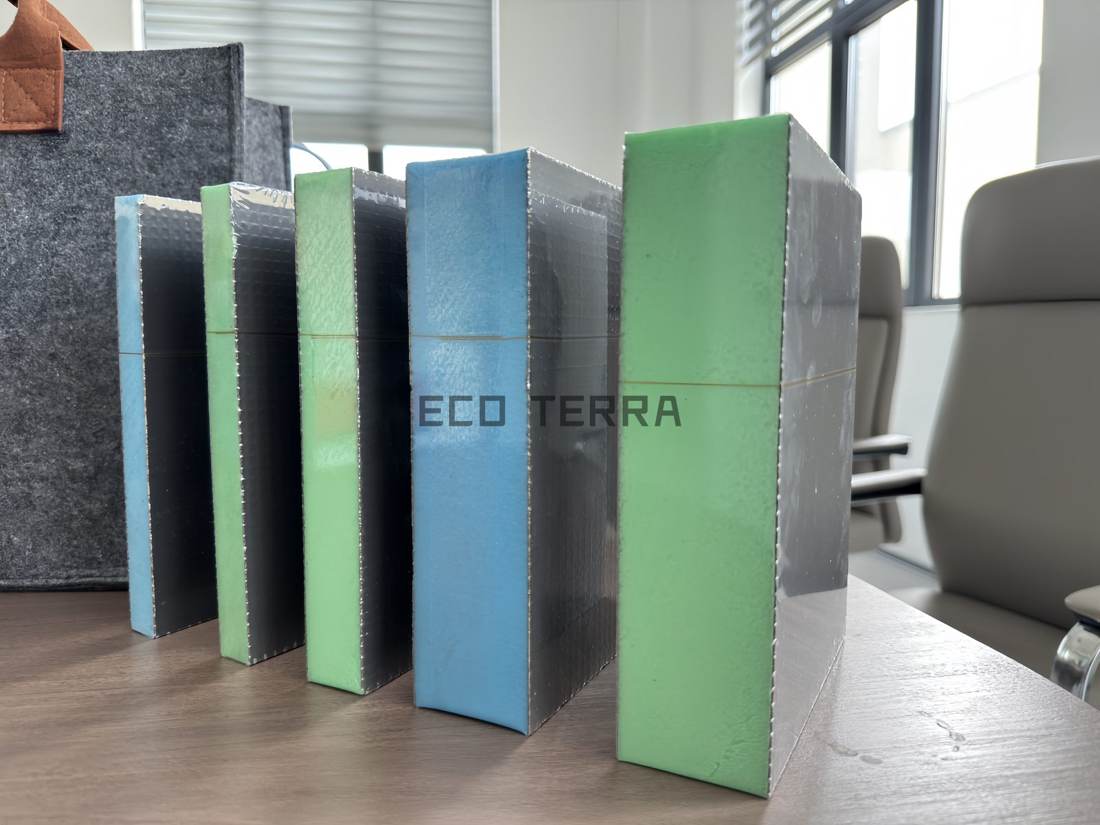

Core colour	Blue / green / pink / white (customisable)

Performance
Apparent density	≥35 kg/㎡ *
Water absorption (96 h immersion)	≤1.0 %
Water-vapour permeability	≤3.0 ng/(m·s·Pa)
Compressive strength (10% deformation)	≥350 kPa
Fire rating	Surface layer Class A non-combustible
Thermal conductivity	≤0.030 W/(m·K)

Construction
Core	Extruded polystyrene (XPS)
Reinforcement	Alkali-resistant glass-fibre mesh
Surface coating	Polymer-modified mortar
Composite	Core + mesh + mortar

Other
Service temperature	-40 to +80 ℃
Standard	Q/HNXX-01-2026
Compatible with	Tile adhesive / polymer mortar / modified mortar

Source: manufacturer's product page. Final values are subject to the official product manual. * Unit shown exactly as published by the manufacturer; to be confirmed.

Certifications & Documents (as published by the manufacturer)

ISO 14001 environmental management · ISO 45001 occupational health & safety · Quality management system certificate [verify: listed as "ISO 19001" on source] · Trademark registrations (Class 17 & 19) · Participated in compiling the 2026 waterproof backer board special atlas
